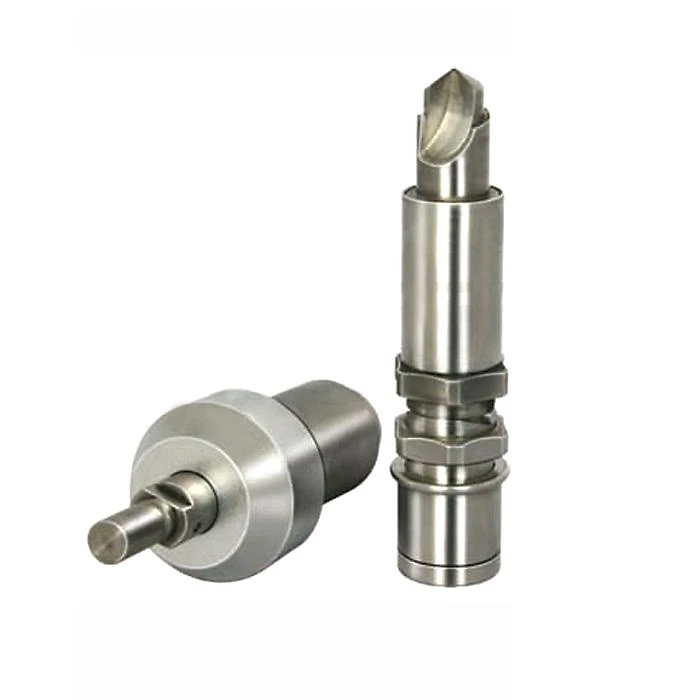

Cranial Drill Attachment
Application: Trauma surgery & Orthopedic Surgery
Materials: Stainless Steel 304
Tolerance: +/-0.01mm
Manufacturing: 5-axis CNC Machining
Facilities: Japan Mazak QTE-100MSYL
Description
Technical Parameters
What is the Cranial Drill Attachment?
The Cranial Drill Attachment is a specialized tool used with cranial drills in neurosurgery and related procedures. It is essential for controlled drilling, creating access points, or securing implants in cranial bones. This attachment supports customization in size and design to meet specific surgical needs. Made with advanced materials, it is compatible with guide pins and specialized bits for reliable performance.
Cranial Drills are used when a craniotomy is needed for placing intracranial pressure (ICP) monitoring devices or cerebrospinal fluid drainage systems. Shenzhen Pride Industrial Co. Ltd. offers tailored solutions for Cranial Drill Attachments to support these critical applications.
Cranial Drill Function
The Cranial Drill, also known as a craniotome, is a specialized tool used in neurosurgery. Its primary function is to create controlled openings in the skull, such as burr holes (trepanation) or larger openings for procedures like craniotomy and craniectomy. These openings provide access to the brain for various surgical interventions.
The drill is essential for placing devices like intracranial pressure (ICP) monitors or cerebrospinal fluid drainage systems. With advanced features, the Cranial Drill minimizes damage to surrounding tissues, making it a critical tool in brain surgery.

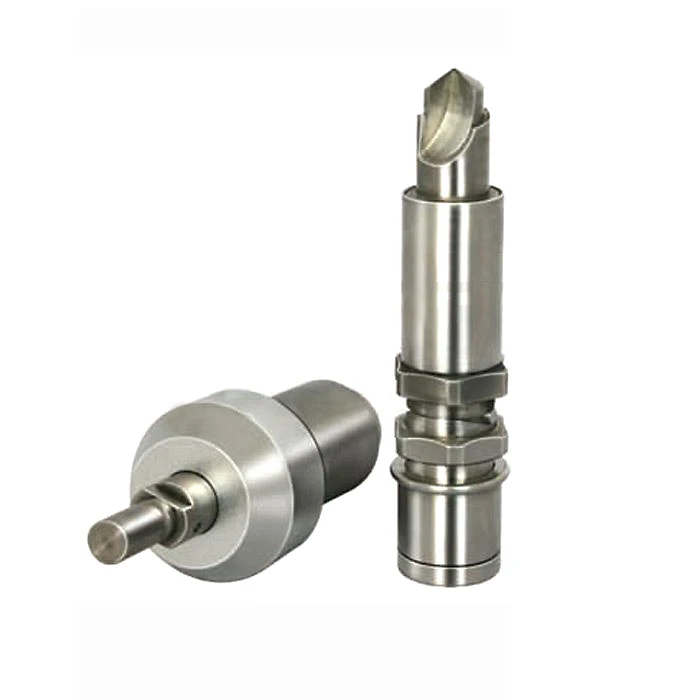

Cranial Drill Attachment Product Specifications
The Cranial Drill Attachment is designed for various surgical needs. It is ideal for thin skull areas, uneven bone surfaces, and pediatric procedures. These perforators are compact, user-friendly, and minimize the risk of dangerous penetration. Key features include sharp edges for smooth cutting with less pressure. A non-skid tip prevents sliding on the skull during start-up. The inner drill forms a bone pad to protect the dura.Both reusable and disposable options are available. Standard sizes include 14mm/11mm and 11mm/7mm models. A specialized version has a 14mm outer drill and a 9mm inner drill. This provides a stronger shelf and thicker bone pad for added protection on uneven bone areas.
Pride offers full customization of cranial perforators. Materials include stainless steel and medical-grade titanium alloys. All materials meet GB 24627 and ASTM F2063 standards, ensuring safety and durability.These parameters are for reference; we offer full customization to meet your specific needs, including material selection, shape design, and machining processes. Custom packaging is available upon request.
Product drawing
|
Product Name |
Cranial Drill Attachment |
|
Application |
Power Tools for Orthopedic Surgery |
|
Materials |
Medical Stainless Steel |
|
Hardness |
HRB 92 (SS304) |
| Function | Tapping |
|
Shape |
Straight |
|
Roughness |
Ra<0.4um |
| Drill speed | 800rpm |
|
Diameter |
9-14mm |
|
Tolerance |
+/-0.01mm |
| Other characteristics |
High Wear Resistance, High Temperature-resistant |
|
Manufacturing |
Sliding Headstock Lathe, 5-Axis CNC Machining |
|
Certification |
ISO 9001:2015, ISO 13485 |
|
Facilities |
Japan Mazak QTE-100MSYL, Citizen Cincom L12-1M7 |
| Transportation |
FedEx, DHL, TNT, EMS, etc. |
|
Packing |
PP bag or tailor-made packing on request |
Cranial drill sizes serve different surgical needs. Larger sizes (e.g., 14mm/11mm) are ideal for adult patients or procedures requiring wider openings, such as cranial repairs or implant placements. Smaller sizes (e.g., 11mm/7mm or drills with a 9mm inner diameter) are suited for pediatric patients or thin skull areas, offering precision for delicate operations.
Smaller drills create thicker bone pads, enhancing dura protection, especially on uneven surfaces. They provide better control for narrow or curved areas but require higher surgical skill. In contrast, larger drills cut faster and reduce operating time but demand careful handling to avoid complications. They are better for straight openings and large exposure areas. Each size balances speed, precision, and safety, tailored to specific surgical applications.
Manufacturing Process for Cannulated Drill Attachment
The Cranial Drill Attachment is manufactured using advanced and precise techniques. Processes include 5-axis CNC machining and Swiss-type machining for operations like milling, drilling, and turning. High-end equipment, such as the Mazak QTE-100MSYL and Citizen Cincom L12-1M7, ensures superior quality.
Tight tolerances of +/-0.01mm are maintained, with surface roughness controlled at Ra < 0.4um. Materials are carefully selected and processed to meet rigorous standards for safety and performance. Various surface treatments are applied to enhance the final product. These include polishing, electropolishing, ultrasonic cleaning, acid etching, and passivation. Electropolishing refines the surface and improves resistance to corrosion. Ultrasonic cleaning effectively removes contaminants from hard-to-reach areas.
Process Flow
|
Components |
Process Flow |
Process Name |
Machine Used |
Machine Brand |
Inspection Equipment |
|
Cranial Drill Attachment |
1 |
Incoming |
N/A |
N/A |
1. Pin gauge 2. Calipers |
| 2 |
Milling |
5-axis CNC Machine |
Mazak QTE-100MSYL |
Profile Projectors |
|
| 3 |
Turning |
5-axis CNC Machine |
Mazak QTE-100MSYL |
Profile Projectors |
|
| 4 |
Drilling |
5-axis CNC Machine |
Mazak QTE-100MSYL |
Profile Projectors |
|
| 5 |
Electrolytic polishing |
N/A |
N/A |
||
| 6 |
Ultrasonic cleaning |
N/A |
N/A |
||
| 7 |
Inspection & packing |
N/A |
N/A |
Video of the CNC Manufacturing Process
Explore the world of CNC manufacturing in action! This video gives a quick look into our process, step by step. See raw materials transformed into precise, finished parts. Watch advanced machines and skilled hands at work. Curious about our craftsmanship? Click to view the full video!
Customized Services for Cannulated Drill Attachment
We offer customization for all components of cranial drill attachments. This includes the body, shaft, head, latch, bolt, bearing, O-ring, and outer ring. We also provide custom solutions for other bone drill accessories like cannulated drill bits, bone reamers, and guide pins. Whether you need a complete attachment, individual parts, or a small batch of sample customizations, Shenzhen Pride Industrial Co. Ltd. can fulfill your exact requirements. We focus on delivering precise, high-quality, and tailored solutions, no matter the size of the request.
FAQ
01.What is a Cranial Drill and Its Attachment Used For?
02.What sizes are available for Cranial Drill Attachments?
03.What materials are used in the manufacturing of these attachments?
They are typically made from medical-grade stainless steel or titanium alloys. These materials meet GB 24627 and ASTM F2063 standards, ensuring safety and durability.
04.Are Cranial Drill Attachments reusable or disposable?
Both options are available. Reusable attachments are designed for multiple uses with proper sterilization, while disposable ones are intended for single use to ensure hygiene.
05.What surface treatments are applied to Cranial Drill Attachments?
Surface treatments include electropolishing, ultrasonic cleaning, acid etching, and passivation. These processes improve corrosion resistance, smoothness, and overall quality.
06.Can the Cranial Drill Attachments be customized?
Yes, Pride offers full customization. Shape, size, and specific features can be tailored to meet unique surgical requirements.
