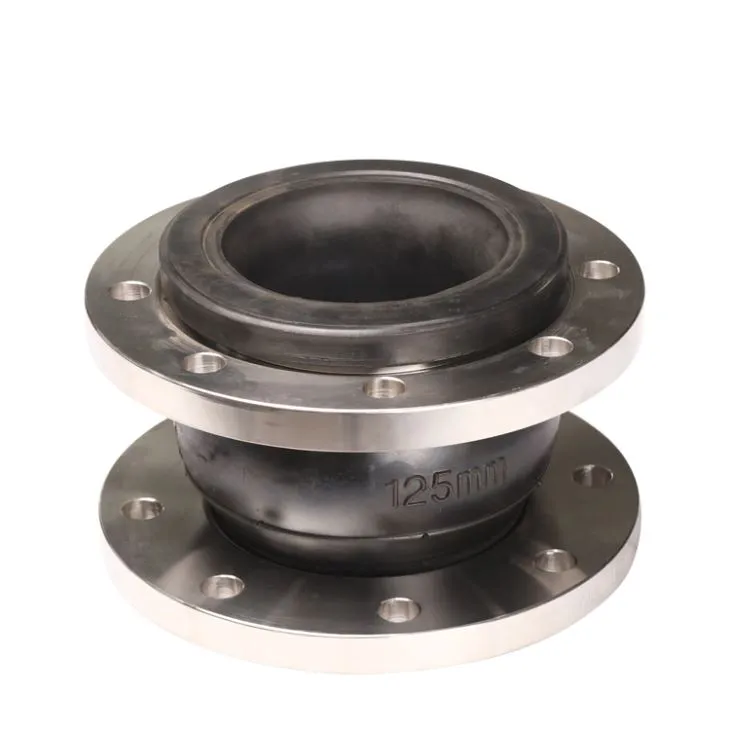

Pipe Fittings Rubber Expansion Joint With Flange

Pipe Fittings Rubber Expansion Joint With Flange
Pipe Fittings Rubber Expansion Joint With Flange
Pipe Fittings Rubber Expansion Joint With Flange
Pipe Fittings Rubber Expansion Joint With Flange

Pipe Fittings Rubber Expansion Joint With Flange

Name: China Customized Pipe Fittings Rubber Expansion Joint With Flange Manufacturers, Suppliers - Factory Direct Wholesale - Pride
Brand: Pride
SKU: 115578642

fay@pride-cnc.com Block D, Dianlian Science Park, Matian St., Guangming District, Shenzhen 518106, China +8613477665385 CNC Milling Workshop CNC machining centers, high speed drill and tap center CNC Turning Workshop Slant bed CNC turning machine, diameter range from 200 to 630mm Laser Cutting...

Send Inquiry

Chat Now

Description

Technical Parameters

Video

Quick Details

Technics:	Welded, EPDM Rubber Joint
Connection:	Flange
Shape:	Equal
Head Code:	Round
Material:	EPDM, NEO, Butyl, Nitrile, Hypalon, Natural Rubber Joint
Product Name:	Flexible Rubber Joint
Application:	Water, Warm Water, Sea Water, Weak Acid Fluid, Soda Fluid etc.
Temperature Rating:	Max 1000℃
Bursting Pressure:	60kg/cm2(11/4''~8'') 40kg/cm2(10''~24'')
Rated Working Pressure:	10Bar,16Bar,25Bar, 40Bar
Certification:	ISO9001:2008
Flange Standard:	ANSI, BS, GB, JIS, DIN..
Size:	DN15-DN1800
OEM/ODM:	Allowed
Packaging Details:	Carton Box, Pallet or Wooden Case

Shows of Product

20200722165505a5cc79cce6d94885be0815a83814b21b

202007221655071cd5da3d817445919269113a657a8418

20200722165508dca022c4333d46fdbbae75185f94d4e7

2020072216550834fabdd27ca24132bff1b48f4ad0c714

More Detail

	CHARACTERISTICS
	Small size, light weight, easy to install. It can absorb lateral, axial and angular displacement caused by pipe vibration after installation, and is not limited by pipe's non-concentric and non-parallel flange. When working, the structure can reduce noise transmission and strong vibration absorption ability.

APPLICATION

- Power Generation Stations

- Oil & Gas

- Desalination

- Cooling Systems

- Pumps

- Heating,Ventilating and Air Conditioning

- Pipe Systems

- Cooling Systems Power Generation

- Food Process
