Silicone Tubing L Shape Angle Hose Connector
Description
Technical Parameters
Quick Details
Technics: | Moulding Injection |
Connection: | Barb-to-Female |
| Shape: | Elbow |
| Head Code: | Rounded |
| Product Name: | Barb-to-Female Adapter |
| Material: | PP/PTFE |
| Color: | Natural PP/PTFE |
| Thread: | 1/4-28UNF Female |
Flexible Tube: | ID2.4-3.2mm |
| Medium: | Gas/Liquid |
| Certificate: | ROHS |

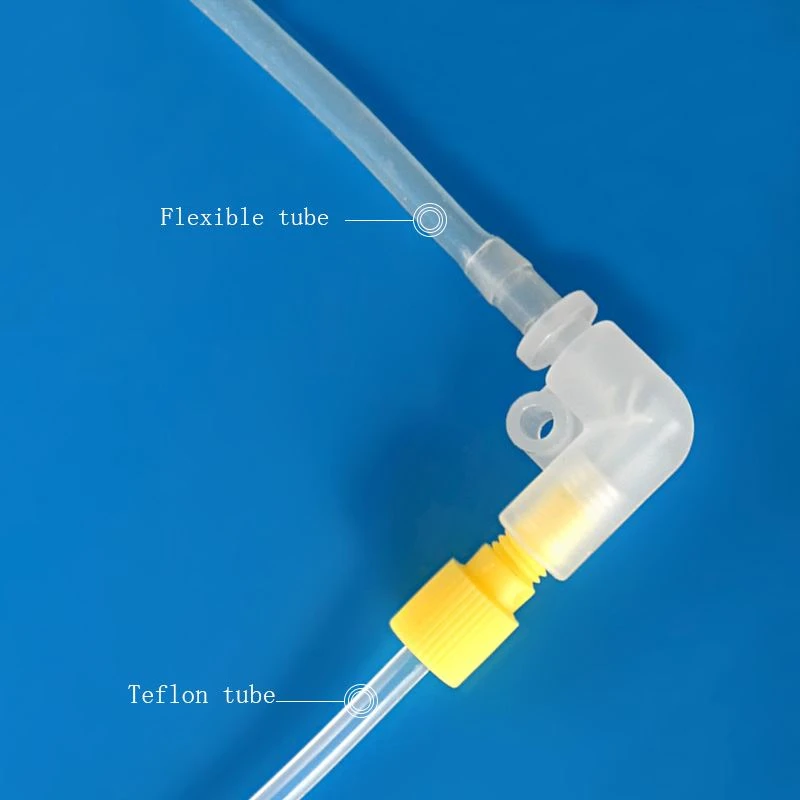

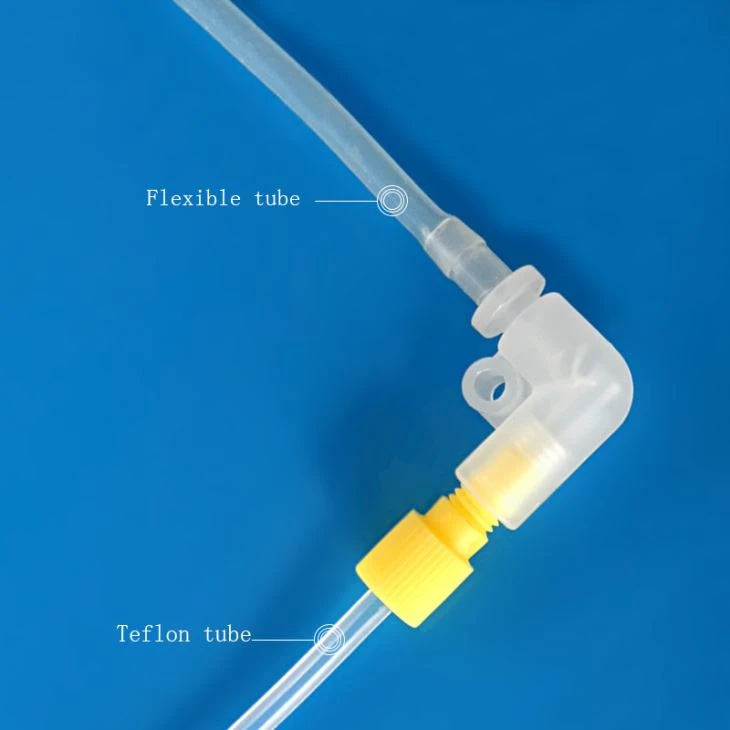

| Function: | Connect flexible with rigid tube |
| Application: | Industry, medical, lab instrument |
Single Package Size: | 8.5X15X11 cm |
| Single Gross Weight: | 0.300 kg |
| Package Type: | Box with inner bag and foam |

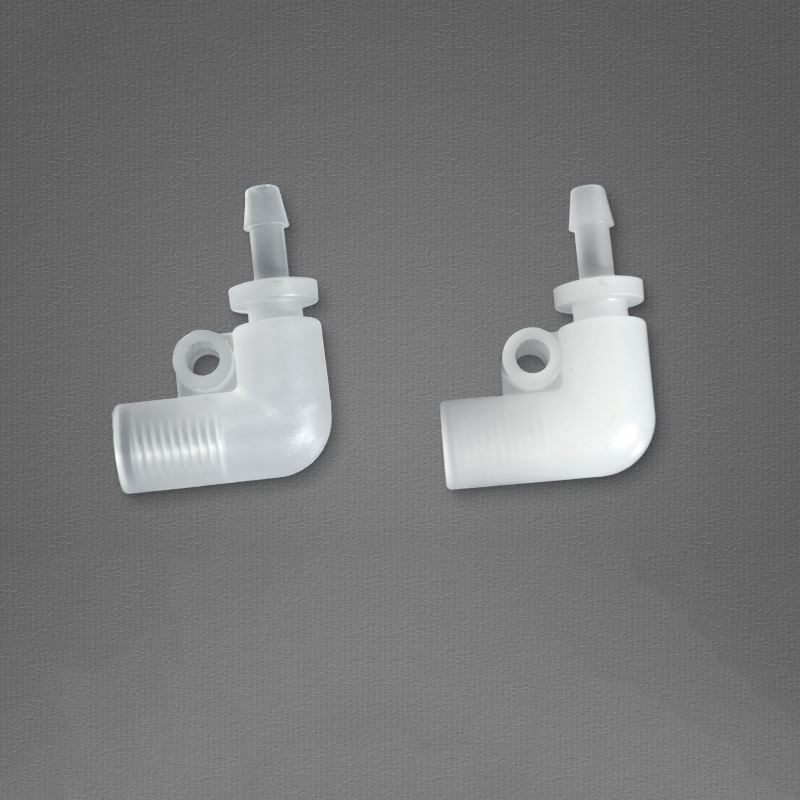

Shows of Product
More Details
| Material: | PP (Medical Grade)/PTFE(Medical Grade) |
| Color: | Natural PP/Natural PTFE |
| Female Thread: | 1/4-28 UNF |
Female Tubing OD (mm): | 3.2/3.175 3.0/2.5/2.0/1.6 |
| Barbed End (∅3.5): | Tubing ID 2.5-3.5mm |
| Pressure Rating Room Temp. (psi /MPa): | 116/0.8 |

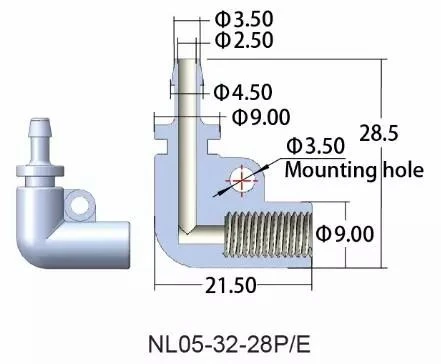

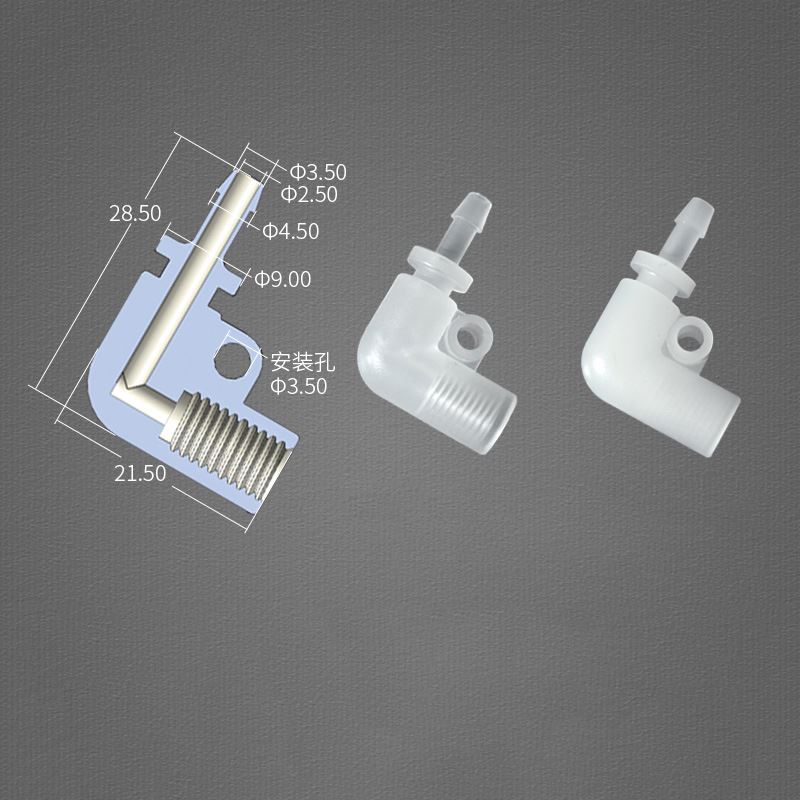

 | Dimension (unit: mm) |
 |
| Application Note |

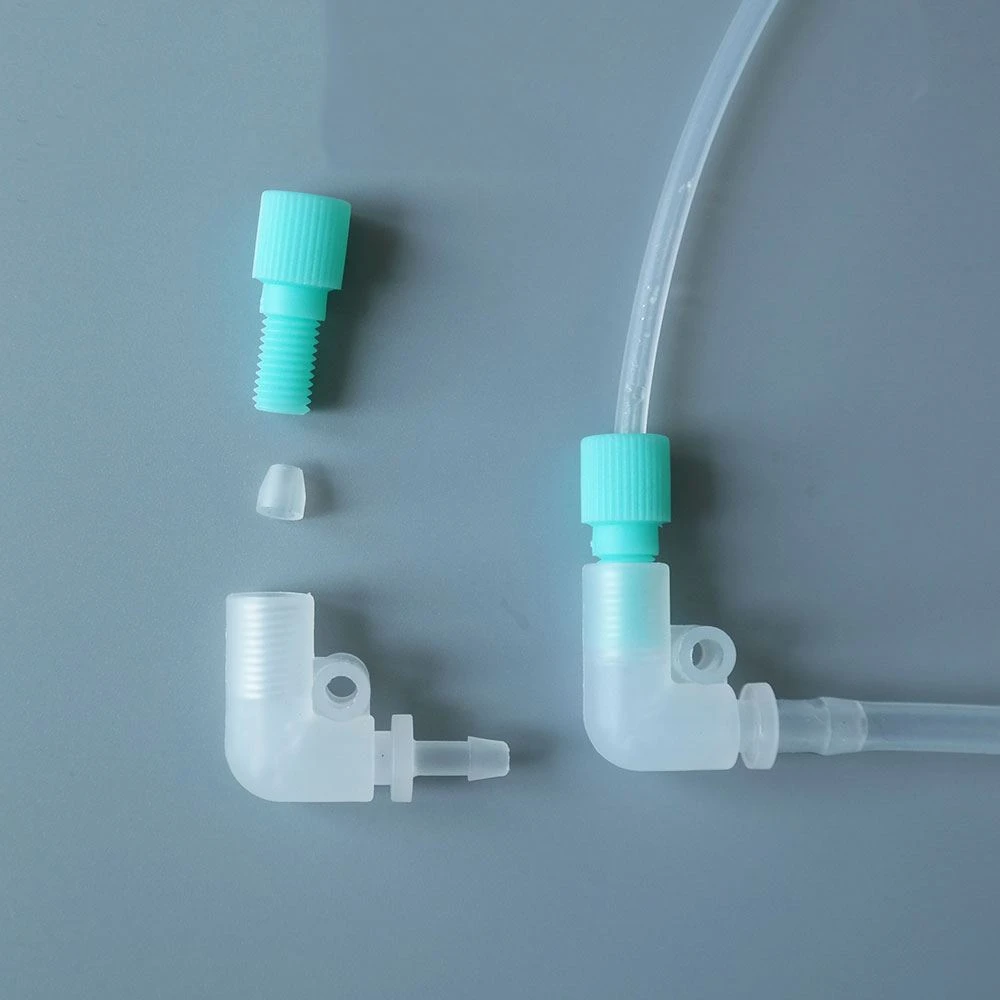

1. Elbow female thread to barbed adapters need to match with male fittings of same thread type. 2. One-Piece Fittings Installation Steps: a. Prepare 1 pieces same male thread type flanged or flangeless fittings with tubing assembly b. Insert the assembly into the receiving ports, pushing the tubing into the port until it bottoms out. d. Finger tighten the nut into the port until snug. e. After several uses (especially at high pressure) the ferrule or flanged tube should be replaced. f. Connect the flexible tubing into the barbed end
|
