Shaft Collar Aluminum Stainless Locking Plastic Collars Lock 3/16 Flange Clamp

Product Description

We have stock of the following products, please contact us for the price!

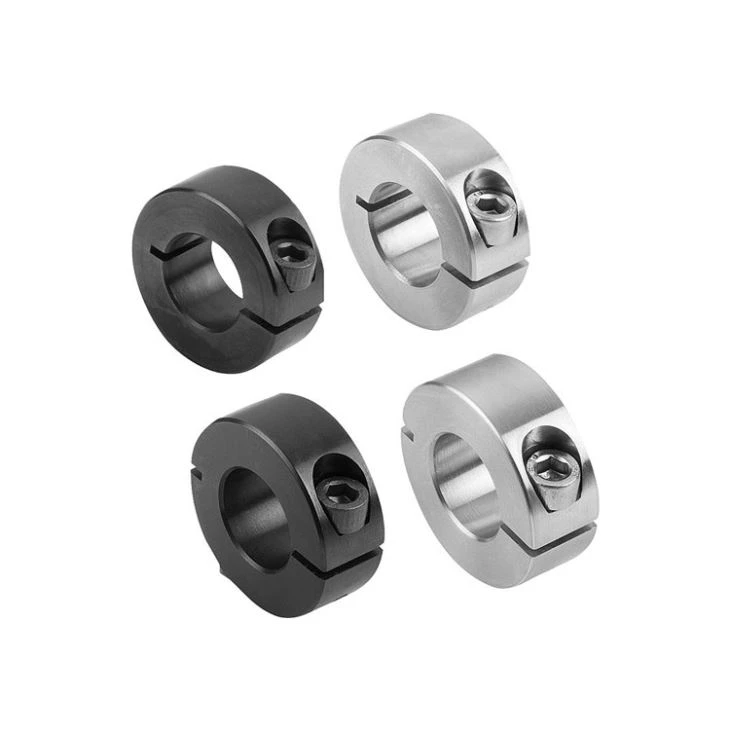

	ONE-PIECE: Carbon steel and black oxide	Bore size: 6mm,8mm,12mm,15mm, 16mm,18mm,20mm,22mm,25mm, 30mm,35mm,40mm,50mm,60mm, 70mm,75mm,80mm.
	TWO-PIECES: Carbon steel and black oxide	Bore size: 6mm,8mm,12mm,15mm, 16mm,18mm,20mm,22mm,25mm, 30mm,35mm,40mm,50mm,60mm, 70mm,75mm,80mm.

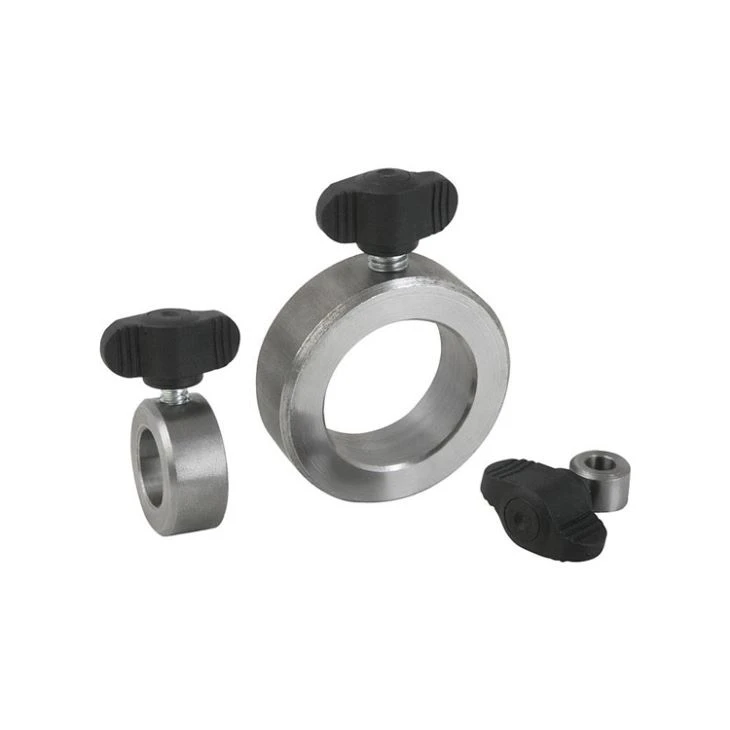

	SET-SCREW: Carbon steel and black oxide	Bore size: 8mm,10mm,13mm

CUSTOM DESIGNS

As a service to our customers, we offer our vast manufacturing experience and talents to meet special needs with custom parts. Our in-house engineering team has extensive experience designing and custom engineering solutions to meet your requirements. If you do not see what you are looking for in our standard line, please inquire about custom options.

Our Warehouse

• Some regular type materials we always keep in stock

• Clean and big moulds warehouse to keep all customers' moulds orderly

In-house Moulds Fabrication

We promise to design and manufacture all your moulds in house, to ensure moulds quality and safety.

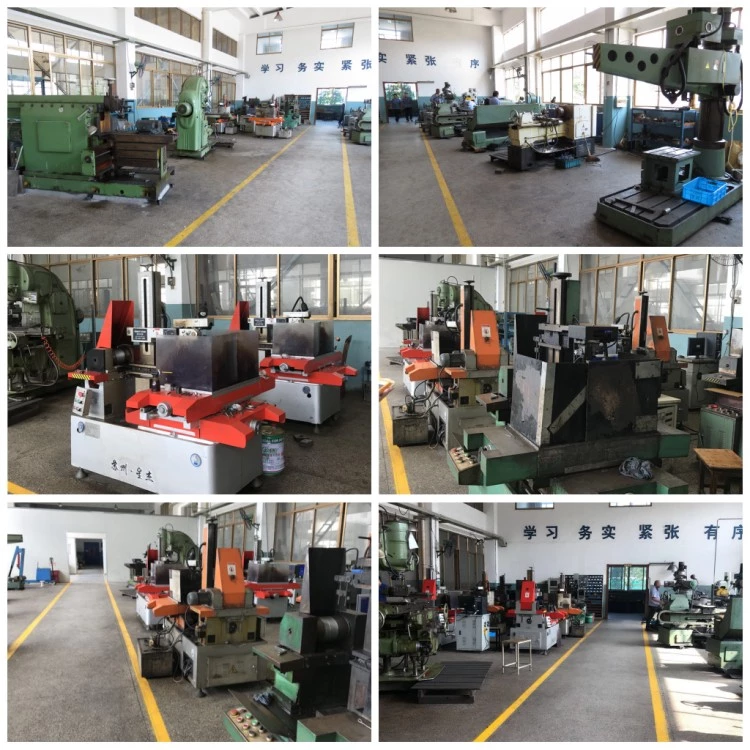

Stamping Workshop

• We have nearly 70 sets stamping machines from small to large. The largest up to 500Ton.

• The moulds and equipments quality effects the stamping products quality. Luckily, we can provide all these with high quality.

CNC Machining Workshop

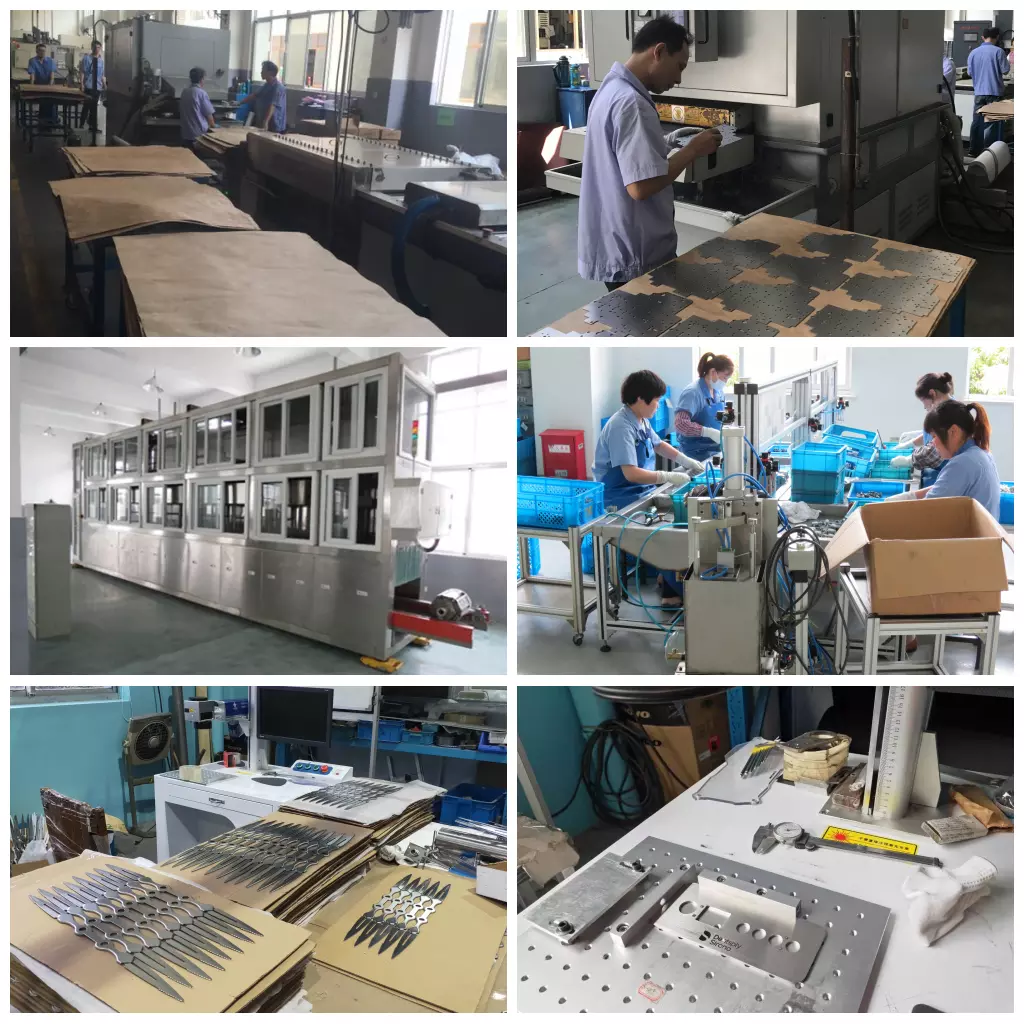

• We have 3/4/5 axis precision advanced CNC machining centers.

• We have advanced lathe turning machines to make the parts fastly (when put the material into the machines, finally the perfect products come out).

Secondary Operation Workshop

• We create the special equipment for deburring and flattening the parts automatically.

• We have ultrasonic cleaning equipment in house, so that all the parts can be cleaned before packaging.

• We have in house laser printing equipment to do your custom LOGO.

Our Inspection Workshop

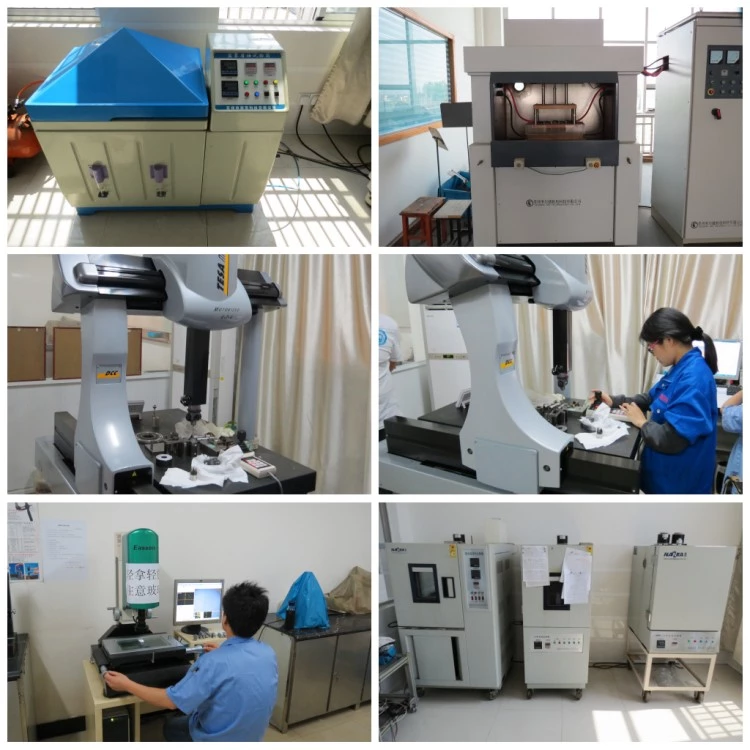

We have low and high temperature testing machines, salt spray test chamber, 3D projector and various inspection tools.

Shenzhen pride Industrial Co., Ltd.

Tel:+8618666663894

Whatsapp:+8615915705962

Fax:+86-917-3387002

Mob:+86-755-23699351

E-mail: crush@pride-cnc.com

Add: Block D, Dianlian Science Park, Matian St., Guangming District, Shenzhen 518106, China
