CNC Car Parts Custom Machining 304 Stainless Wheel Flange Plate
Specifications: customized according to the requirements of drawings and samples
Introduction: Professional hardware accessories processing factory
Description
Technical Parameters
Our Carbon Steel Forged Plate Flange applied to pipe connection with stainless steel 304/304L.
The plate flange has a circular disk that is welded onto the end of a pipe and allows it to be bolted to another pipe. Typically used in fuel and water pipelines, the two flange plates will be bolted together with a gasket in between them. The flange plate will have bolt holes all around the perimeter and will be used to create junctions, tees and joints.
When building a pipeline, the lengths of the pipes used are not always known. By manufacturing the pipe separate from the flange plate, the welders can cut the pipe to length and weld a flange plate in place to join the pipes at any needed length. The plates can also be welded to the pipe on a slight bias, allowing two pipes to be joined that may not be precisely lined up.
1) ANSI B16.5, ASME B16.47 FLANGE
Size range: 1/2" to 80" DN15 to DN2000
Design: welding neck, slip on, blind, socket welding, threaded, lap-joint
Pressure: 150#, 300#, 600#,900#,1500#, 2500#
Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS
Material: carbon steel A105, stainless steel 304/304L, 316/316L
Coating: black paint, yellow transparent paint, cold and hot dip galvanize
Package: seaworthy plywooden case, wooden pallet
2) EN1092-1 FLANGE
Size range: DN15 to DN2000
Design: type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking
type12 slip on flange, type 13 threaded flange
Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100
Material: carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L
Coating: black paint, yellow transparent paint, cold and hot dip galvanize
Package: sea worthy plywooden case, wooden pallet
3) DIN FLANGE
Size range: DN15 to DN2000
Design: slip on flange DIN2573,2576,2502,2503, 2543,2545
welding neck falnge DIN2631, 2632,2633,2634,2635
blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40
threaded falnge DIN2565,2566,2567,2567
loose flange DIN 2641,2642,2656,2673
Material: carbon steel ST37.2, stainless steel 1.4301, 1.4404
4) GOST FLANGE
Size range: DN15 to DN 2000
Design : plate falnge 12820-80, welding neck flange 12821-80
Pressure: PN6, PN10, PN16, PN25, PN40
Material: carbon steel CT-20, stainless steel 304/304L, 316/316L
Coating: rust-proof oil, cold and hot galvanize
Package: sea worthy plywooden case, wooden pallet
5) JIS B2220 FALNGE
Size ragne : 15A to 2000A
Design: SOP, BIND, SOH,
Puressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K
Material: carbon steel SS400, stainless steel SUS304, SUS316
Coating : rust-proof oil, cold and hot galvanize
Packing: sea worthy plywooden case, wooden pallet
| Table ANSI, ASME, ASA, B16.5 150lb/sq.in. Plate Ring Flange RF | |||||||||
| ø | D | b | g | m | J | k | Holes | l | Kg. |
| 1/2" | 88,9 | 11,1 | 34,9 | 30,2 | 22,3 | 60,3 | 4 | 15,9 | 0,400 |
| 3/4" | 98,4 | 12,7 | 42,9 | 38,1 | 27,7 | 69,8 | 4 | 15,9 | 0,700 |
| 1" | 107,9 | 14,3 | 50,8 | 49,2 | 34,5 | 79,4 | 4 | 15,9 | 0,800 |
| 1 1/4" | 117,5 | 15,9 | 63,5 | 58,8 | 43,2 | 88,9 | 4 | 15,9 | 1,100 |
| 1 1/2" | 127,0 | 17,5 | 73,0 | 65,1 | 49,5 | 98,4 | 4 | 15,9 | 1,400 |
| 2" | 152,4 | 19,0 | 92,1 | 77,8 | 62,0 | 120,6 | 4 | 19,0 | 2,200 |
| 2 1/2" | 177,8 | 22,2 | 104,8 | 90,5 | 74,7 | 139,7 | 4 | 19,0 | 3,600 |
| 3" | 190,5 | 23,8 | 127,0 | 107,9 | 90,7 | 152,4 | 4 | 19,0 | 4,100 |
| 3 1/2" | 215,9 | 23,8 | 139,7 | 122,2 | 103,4 | 177,8 | 8 | 19,0 | 5,200 |
| 4" | 228,6 | 23,8 | 157,2 | 134,9 | 116,1 | 190,5 | 8 | 19,0 | 5,600 |
| 5" | 254,0 | 23,8 | 185,7 | 163,6 | 143,8 | 215,9 | 8 | 22,2 | 6,300 |
| 6" | 279,4 | 25,4 | 215,9 | 192,1 | 170,7 | 241,3 | 8 | 22,2 | 7,500 |
| 8" | 342,9 | 28,6 | 269,9 | 246,1 | 221,5 | 298,4 | 8 | 22,2 | 12,600 |
| 10" | 406,4 | 30,2 | 323,8 | 304,8 | 276,3 | 361,9 | 12 | 25,4 | 18,500 |
| 12" | 482,6 | 31,7 | 381,0 | 365,1 | 327,1 | 431,8 | 12 | 25,5 | 28,000 |
| 14" | 533,4 | 34,9 | 412,7 | 400,0 | 359,1 | 476,2 | 12 | 28,6 | 36,000 |
| 16" | 596,9 | 36,5 | 469,9 | 457,2 | 410,5 | 539,7 | 16 | 28,6 | 46,000 |
| 18" | 635,0 | 39,7 | 533,4 | 504,8 | 461,8 | 577,8 | 16 | 31,7 | 50,000 |
| 20" | 698,5 | 42,9 | 584,2 | 558,8 | 513,1 | 635,0 | 20 | 31,7 | 64,000 |
| 22" | 749,3 | 46,0 | 641,2 | 609,6 | 564,4 | 692,1 | 20 | 34,9 | 72,000 |
| 24" | 812,8 | 47,6 | 692,1 | 663,6 | 615,9 | 749,3 | 20 | 34,9 | 89,000 |
NOTE: 1. Class 150 flanges except Lap Joint will be furnished with 0.06 (1.6mm) raised face, which is included in `Thickness` (C) and `Length through Hub` (Y1), (Y3). 2. For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degrees. 3. Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub. 4. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (C). 5. Depth of Socket (D) is covered by ANSI B 16.5 only in sizes through 3 inch, over 3 inch is at the manufacturer`s option.
| Table ANSI, ASME, ASA, B16.5 300lb/sq.in. Plate Flange RF | |||||||||
| ø | D | b | g | m | J | k | Holes | l | Kg. |
| 1/2" | 95,6 | 14,3 | 34,9 | 38,1 | 22,3 | 66,7 | 4 | 15,9 | 0,700 |
| 3/4" | 117,5 | 15,9 | 42,9 | 47,6 | 27,7 | 82,5 | 4 | 19,0 | 1,100 |
| 1" | 123,8 | 17,5 | 50,8 | 54,0 | 34,5 | 88,9 | 4 | 19,0 | 1,400 |
| 1 1/4" | 133,3 | 19,0 | 63,5 | 63,5 | 43,2 | 98,4 | 4 | 19,0 | 1,800 |
| 1 1/2" | 155,6 | 20,6 | 73,0 | 69,8 | 49,5 | 114,3 | 4 | 22,2 | 2,600 |
| 2" | 165,1 | 22,2 | 92,1 | 84,1 | 62,0 | 127,0 | 8 | 19,0 | 3,400 |
| 2 1/2" | 190,5 | 25,4 | 104,8 | 100,0 | 74,7 | 149,2 | 8 | 22,2 | 4,400 |
| 3" | 209,5 | 28,6 | 127,0 | 117,5 | 90,7 | 168,3 | 8 | 22,2 | 6,100 |
| 3 1/2" | 228,6 | 30,2 | 139,7 | 133,3 | 103,4 | 184,1 | 8 | 22,2 | 7,500 |
| 4" | 254,0 | 31,7 | 157,2 | 146,0 | 116,1 | 200,0 | 8 | 22,2 | 10,100 |
| 5" | 279,4 | 34,9 | 185,7 | 177,8 | 143,8 | 234,9 | 8 | 22,2 | 12,500 |
| 6" | 317,5 | 36,5 | 215,9 | 206,4 | 170,7 | 269,9 | 12 | 22,2 | 14,100 |
| 8" | 381,0 | 41,3 | 269,9 | 260,3 | 221,5 | 330,2 | 12 | 25,4 | 24,800 |
| 10" | 444,5 | 47,6 | 323,8 | 320,7 | 276,3 | 387,3 | 16 | 28,6 | 37,100 |
| 12" | 520,7 | 50,8 | 381,0 | 374,6 | 327,1 | 450,8 | 16 | 31,7 | 50,000 |
| 14" | 584,2 | 54,0 | 412,7 | 425,4 | 359,1 | 514,3 | 20 | 31,7 | 70,000 |
| 16" | 647,7 | 57,1 | 469,9 | 482,6 | 410,5 | 571,5 | 20 | 34,9 | 90,000 |
| 18" | 711,2 | 60,3 | 533,4 | 533,4 | 461,8 | 628,6 | 24 | 34,9 | 112,000 |
| 20" | 774,7 | 63,5 | 584,2 | 584,2 | 513,1 | 685,8 | 24 | 34,9 | 133,000 |
| 22" | 838,2 | 66,7 | 641,2 | 641,2 | 564,4 | 742,9 | 24 | 41,3 | 197,000 |
| 24" | 914,4 | 69,8 | 692,1 | 701,7 | 615,9 | 812,8 | 24 | 41,3 | 208,000 |
NOTE:1. Class 300 flanges except Lap Joint will be furnished with 0.06 (1.6mm) raised face, which is included in `Thickness` (C) and `Length through Hub` (Y1), (Y3). 2. For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degrees. 3. Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub. 4. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (C). 5. Depth of Socket (D) is covered by ANSI B 16.5 only in sizes through 3 inch, over 3 inch is at the manufacturer`s option.
| Table ANSI, ASME, ASA, B16.5 600lb/sq.in. Plate Flange RF | |||||||||
| ø | D | b | g | m | J | k | Holes | l | Kg. |
| 1/2" | 95,2 | 14,3 | 34,9 | 38,1 | 22,3 | 66,7 | 4 | 15,9 | 0,800 |
| 3/4" | 117,5 | 15,9 | 42,9 | 47,6 | 27,7 | 82,5 | 4 | 19,0 | 1,400 |
| 1" | 123,8 | 17,5 | 50,8 | 54,0 | 34,5 | 88,9 | 4 | 19,0 | 1,600 |
| 1 1/4" | 133,3 | 20,6 | 63,5 | 63,5 | 43,2 | 98,4 | 4 | 19,0 | 2,100 |
| 1 1/2" | 155,6 | 22,2 | 73,0 | 69,8 | 49,5 | 114,3 | 4 | 22,2 | 3,100 |
| 2" | 165,1 | 25,4 | 92,1 | 84,1 | 62,0 | 127,0 | 8 | 19,0 | 3,700 |
| 2 1/2" | 190,5 | 28,6 | 104,8 | 100,0 | 74,7 | 149,2 | 8 | 22,2 | 5,400 |
| 3" | 209,5 | 31,7 | 127,0 | 117,5 | 90,7 | 168,3 | 8 | 22,2 | 7,300 |
| 3 1/2" | 228,6 | 34,9 | 139,7 | 133,3 | 103,4 | 184,1 | 8 | 25,4 | 8,900 |
| 4" | 273,0 | 38,1 | 157,2 | 152,4 | 116,1 | 215,9 | 8 | 25,4 | 11,800 |
| 5" | 330,2 | 44,4 | 185,7 | 188,9 | 143,8 | 266,7 | 8 | 28,6 | 24,500 |
| 6" | 355,6 | 47,6 | 215,9 | 222,2 | 170,7 | 292,1 | 12 | 28,6 | 29,500 |
| 8" | 419,1 | 55,6 | 269,9 | 273,0 | 221,5 | 349,2 | 12 | 31,7 | 43,000 |
| 10" | 508,0 | 63,5 | 323,8 | 342,8 | 276,3 | 431,8 | 16 | 34,9 | 70,000 |
| 12" | 558,8 | 66,7 | 381,0 | 400,0 | 327,1 | 488,9 | 20 | 34,9 | 86,000 |
| 14" | 603,2 | 69,8 | 412,7 | 431,8 | 359,1 | 527,0 | 20 | 38,1 | 100,000 |
| 16" | 685,8 | 76,2 | 469,9 | 495,3 | 410,5 | 603,2 | 20 | 41,3 | 142,000 |
| 18" | 742,9 | 82,5 | 533,4 | 546,1 | 461,8 | 654,0 | 20 | 44,4 | 175,000 |
| 20" | 812,8 | 88,9 | 584,2 | 609,6 | 513,1 | 723,9 | 24 | 44,4 | 232,000 |
| 22" | 869,9 | 95,2 | 641,2 | 666,7 | 564,4 | 777,9 | 24 | 47,6 | 292,000 |
| 24" | 939,8 | 101,6 | 692,1 | 717,5 | 615,9 | 838,2 | 24 | 50,8 | 330,000 |
NOTE:1. Class 600 flanges except Lap Joint will be furnished with 0.25 (6.35mm) raised face, which is not included in `Thickness` (C) and `Length through Hub` (Y1), (Y3). 2. For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degrees. 3. Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub. 4. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (C). 5. Dimensions of sizes 1/2 through 3 1/2 are the same as for Class 400 Flanges. 6. Depth of Socket (D) is covered by ANSI B 16.5 only in sizes through 3 inch, over 3 inch is at the manufacturer`s option.

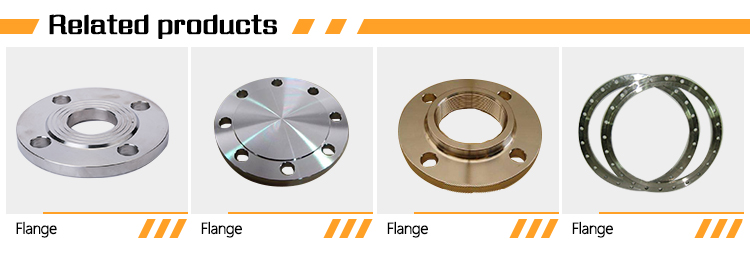

Plate Flange Showcase
Flanges Plate Inspection Equipment
Plate Flanges Packaging And Shipping
Our Warehouse
Some regular type materials we always keep in stock
Clean and big moulds warehouse to keep all customers' moulds orderly
In-house Moulds Fabrication
We promise to design and manufacture all your moulds in house, to ensure moulds quality and safety.
Stamping Workshop
We have nearly 70 sets stamping machines from small to large. The largest up to 500Ton.
The moulds and equipments quality effects the stamping products quality. Luckily, we can provide all these with high quality.
CNC Machining Workshop
We have 3/4/5 axis precision advanced CNC machining centers.
We have advanced lathe turning machines to make the parts fastly (when put the material into the machines, finally the perfect products come out).
Secondary Operation Workshop
We create the special equipment for deburring and flattening the parts automatically.
We have ultrasonic cleaning equipment in house, so that all the parts can be cleaned before packaging.
We have in house laser printing equipment to do your custom LOGO.
Our Inspection Workshop
We have low and high temperature testing machines, salt spray test chamber, 3D projector and various inspection tools.
