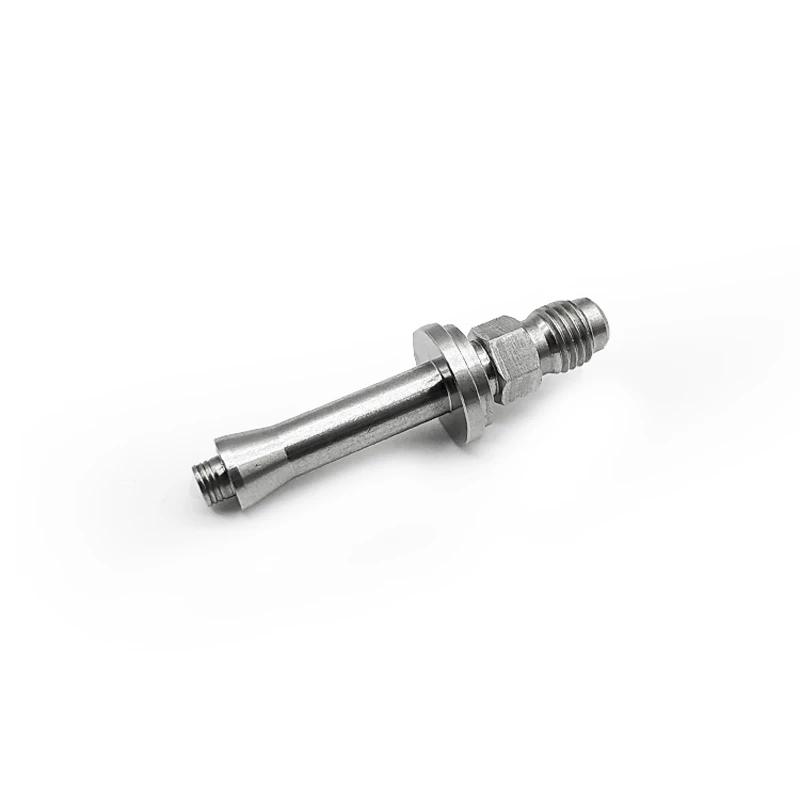

Hot Temp Sensor Pipe Fittings Tube Jig

In machining, what are the technical requirements that need to be followed? Only by complying with these technical requirements can the machined finished products be more standardized and reasonable. The specific technical requirements are as follows: (14) The outer ring of the bearing and the semi-circular holes of the open bearing seat and the bearing cover should not be stuck; the outer ring of the bearing should be in good contact with the semi-circular holes of the open bearing seat and the bearing cover. The seat should be in even contact with the bearing cover in the range of 120° symmetrical to the center line and 90° symmetrical to the center line. When checking with a feeler gauge within the above range, a 0.03mm feeler gauge shall not be inserted into 1/3 of the width of the outer ring.
