Plastic Pressure Relief Diaphragm Medical Miniature Small Check Valve
Description
Technical Parameters
Video
| Quick Details |
Type: | Stop & Waste Valves, Water Regulating Valves, spring/diaphragm |

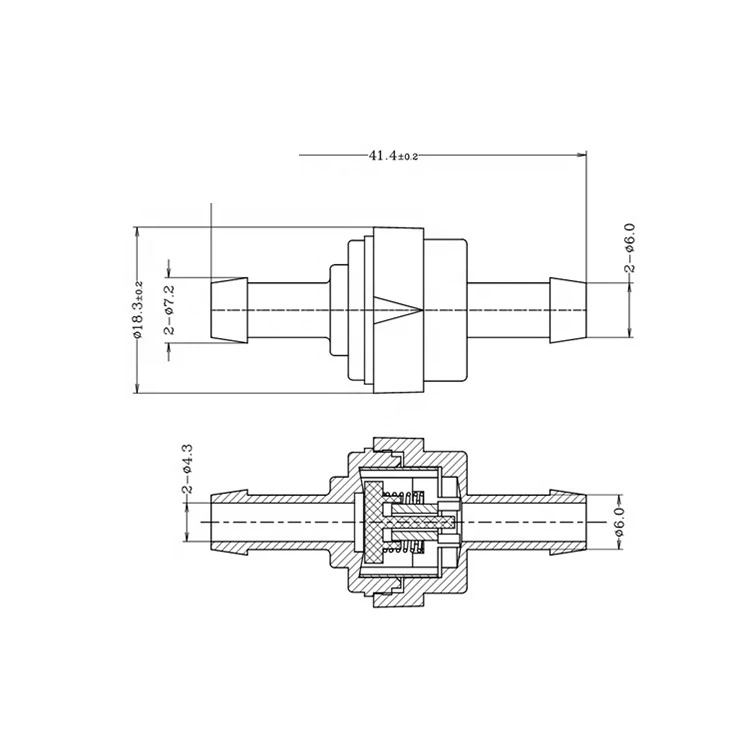

| Port Size: | See below drawing |
| Standard or Nonstandard: | Standard |
| Product Name: | mini plastic pneumatic diapahragm check valve |
| Valve Type: | surgical supplies,diaphragm,high pressure,low pressure,plastic,rubber |
Body Material: | PC |
| Inner Material: | Silicone |
| Opening Pressure: | 0-1 kpa |
| Temperature of Media: | Normal Temperature |
| Power: | Pneumatic |
| Structure: | Check |
| Media: | Gas ,water , oil |
| Shows of Production |
| Our Company |
CNC Milling Workshop
CNC machining centers, high speed drill and tap center
CNC Turning Workshop
Slant bed CNC turning machine, diameter range from 200 to 630mm
Laser Cutting And Welding Workshop
Robot arm laser welding
Stamping Workshop
Hydraulic punching machines from 30 tons to 300 tons
| Our Machines |
| Packing & Delivery |
1. Professional Placement
2. Plastic Bags
3. Carton Boxes For Shipping
4. Professional Placement
5. Professional Shock
6. Complete Package
| Latest News |
 | Polycarbonate PC |
Polycarbonate PC is one of the most popular medical device plastics. The material is resistant to shock, UV and high temperatures. It is transparent, stable in size and flame retardant. It can withstand the sterilization of gamma rays or ethylene oxide and can be assembled by ultrasonic welding. Typical applications include high-pressure syringes, arterial intubation, valves, centrifugal separators, blood filter housings, and dialysis machine housings.
Polycarbonate is a viable option when Tristel Solutions wants to design a faster and better system for cleaning and disinfecting endoscopes and ultrasound instruments. Its Stella cleaning system requires materials to be biocompatible, heat resistant, and medicalgrade lysates that can withstand an autoclave environment of up to 134 degrees C.
Apec 1745 high-heat polycarbonate from Covestro meets these requirements. This transparent and robust copolycarbonate is suitable for medical applications that require autoclave, with advantages such as easy release, high softening temperature, good hydrolysis resistance and biocompatibility, and meets many ISO 10993-1 test requirements. Applications include baby incubators, dental or surgical instruments, disinfection boxes and endoscope disinfection systems.
The transparency of polycarbonate materials is important for Tristel Solutions because users of Stella cleaning systems need to monitor the disinfection process. Its easy-to-process properties allow large contaminated pallets to be molded in one place, reducing assembly time and eliminating the risk of liquid leakage.
Hot Tags: plastic pressure relief diaphragm medical miniature small check valve, China, manufacturers, suppliers, factory, wholesale, customized, made in China
