Description

Technical Parameters

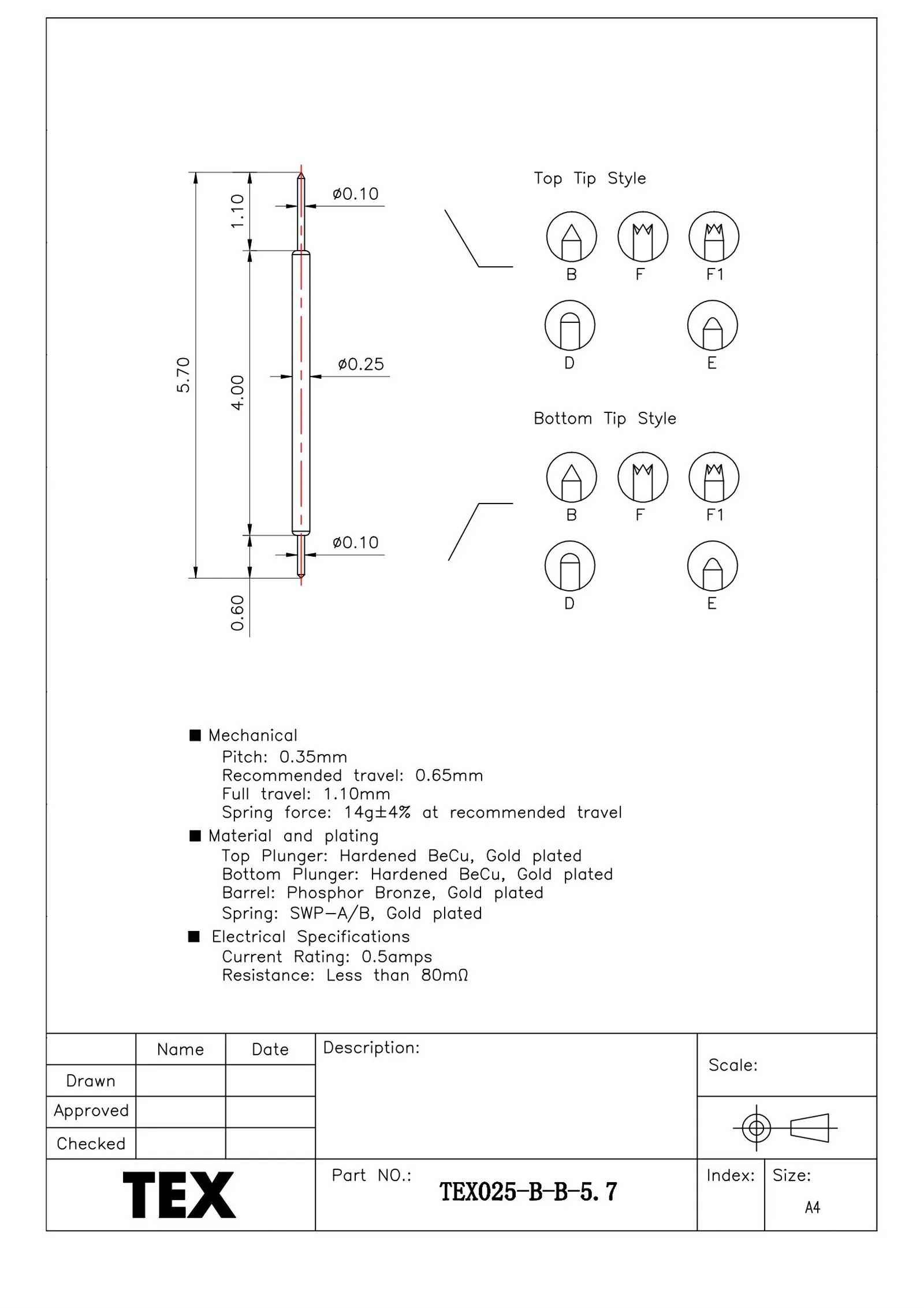

Model: TEX025-B-B-5.7 (B represents the needle head type, options include B, F, F1, D, E, etc.)

Customization available according to your requirements!

Mechanical Parameters:

Needle Diameter: 0.25mm

Total Length: 5.70mm

Full Stroke: 1.10mm

Rated Stroke: 0.65mm

Rated Spring Force: 14±4gf @ load 0.65mm

Electrical Parameters:

Rated Current: 0.5 amps

Contact Resistance: 80mohms max

TEX025-B-B-5700
