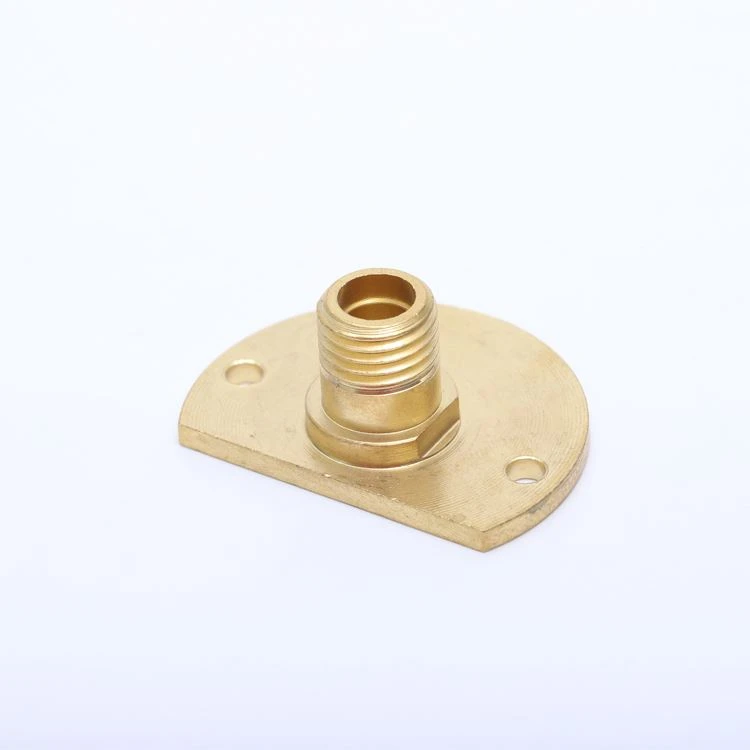

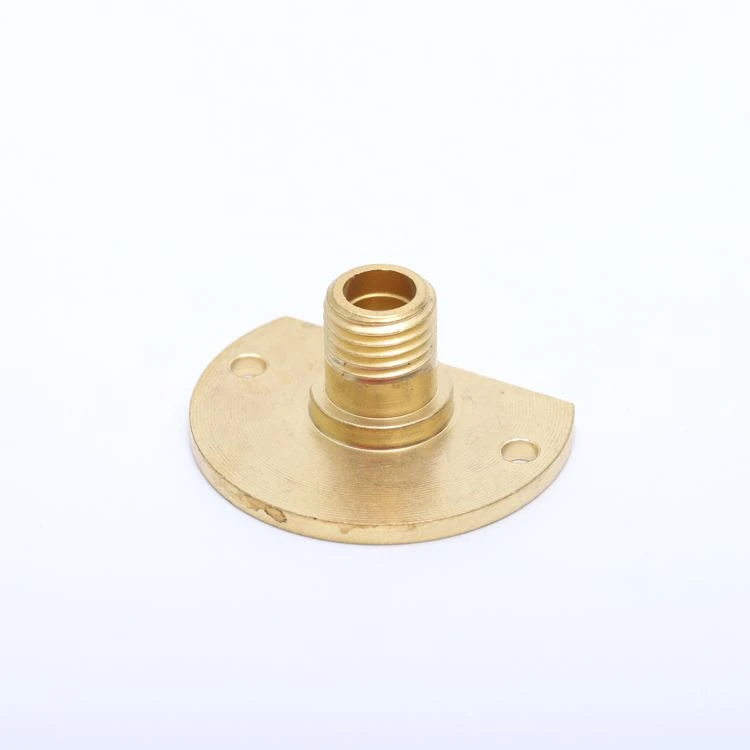

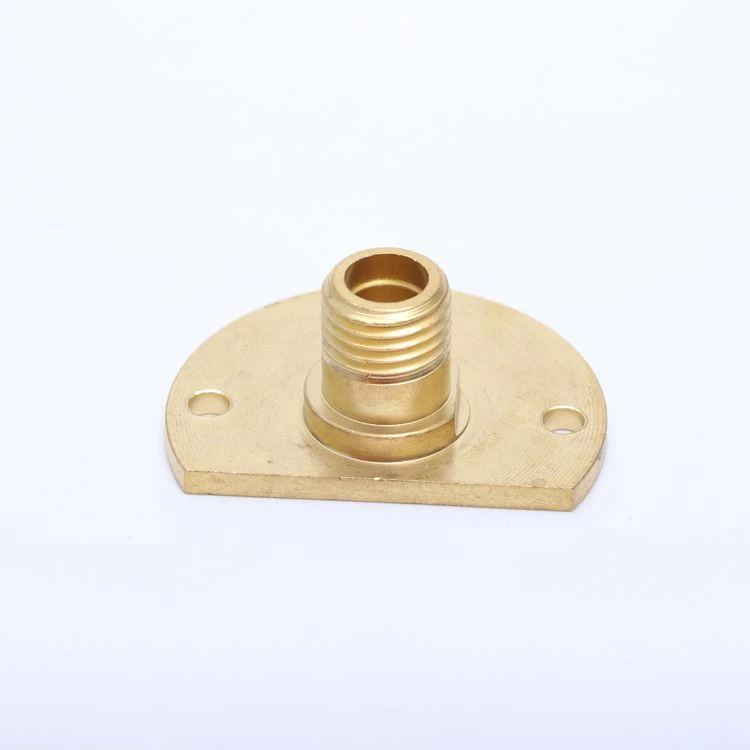

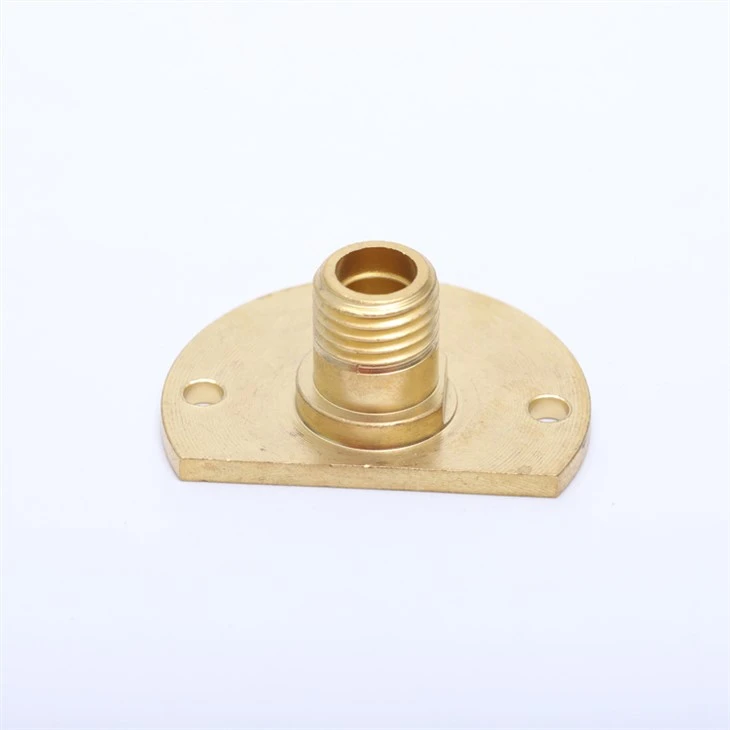

Brass Plumbing Forged Male BSP NPT OEM Connector Tube Fitting

fay@pride-cnc.com
Block D, Dianlian Science Park, Matian St., Guangming District, Shenzhen 518106, China

+8613477665385

 13477665385

The Synthesis of Measurement Function

Synthesis is also known as compounding, it contains two aspects of meaning, one is to improve the function of the measuring machine, increase the detection project, on the other hand, to expand the detection range, a measuring machine equipped with a number of different ways of detector, can detect different measurement objects. Measurements that used to require multiple measuring machines can now be done with a single multi-function measuring machine, resulting in significant improvements in efficiency and accuracy.

Mahr, a German company, presented a multi-function measuring machine at the conference, which added the function of the coordinate measuring machine to the roundness measuring machine. As a roundness measuring machine, it is required to have a good high-precision swing shaft and Z-axis drive mechanism, and then the long-stroke Y-axis and X-axis drive mechanism are combined with it, using a turn-loop head, so that the machine has the function of a coordinate measuring machine. This measuring machine can measure geometric errors such as roundness, cylindricalness, parallelism, and also measure length and angle such as diameter and grade difference. The measuring range of the machine is 300 (X) ×600 (Y) ×700 (Z)mm, the accuracy of the measurement length is U1 s 1.2 s L/500 sm, U2 s 1.5 s L/300 sm, U3 s 2.0 s L/300 sm.

For a long time, the three-coordinate measuring machine and the swing work station can be combined to measure the gear, crankshaft, camshaft and other complex shapes of work. Mahr's multi-function measuring machine makes it easy to measure large shaft shapes of long sizes because it makes efficient use of space on the swing workbench. It was stated that it could be further extended to the measurement of complex cylindrical objects in the future.

In semiconductors, electronic parts or forming with small molds, plastic products and other complex small parts of the size, shape measurement, can be equipped with microscopes, CCD cameras, image processing equipment non-contact coordinate measuring machine. Japan's optical machines, measuring devices, home appliances and other manufacturers, in positioning, focusing, lighting, edge detection and other technical fields, has developed a number of unique testing products, in recent years, most of the products have been popularized and applied.

At the exhibition, four companies exhibited coordinate measuring machines with additional CCD sensors, laser sensors or contact head sensors, and three physical objects were exhibited. For example, Japan's Sanfeng Company exhibited a rapid imaging image measuring machine. These types of contact head sensors allow for three-dimensional measurements of the size of intricate parts of the camera that are difficult to ingest or any height dimension of a deep hole. It can be seen that the combination of non-contact mode using optical principles can make the coordinate measuring machine have a wider application area.

Hot Tags: brass plumbing forged male bsp npt oem connector tube fitting, China, manufacturers, suppliers, factory, wholesale, customized, made in China
